How is the power of a Zener diode calculated?

A Zener diode is an electronic component used in DC voltage regulator circuits. The power rating of a Zener diode indicates the maximum power that the diode can safely dissipate. In the formula below, power equals the voltage multiplied by the current.

Why is it important to know the Zener voltage?

IZM is the maximum current that can flow through the diode, and PZM is the diode’s maximum power dissipation, and VZ is the Zener voltage. Knowing the maximum current that can flow through the Zener diode is important, because exceeding its power rating can damage or destroy the component.

How does avalanche effect occur in a Zener diode?

The avalanche effect occurs in both rectifier and Zener diodes at a sufficiently high reverse voltage. On the other hand, Zener breakdown occurs in a Zener diode at low reverse voltages. A Zener diode is heavily doped to reduce the breakdown voltage. This causes a very thin depletion region.

Are there drawbacks to a Zener stabilized power supply?

Although a zener stabilized power supply is a quick, easy and effective method of achieving a stabilized output, it includes a few serious drawbacks. The output current is low, which may support high current loads at the output. The stabilization can happen only for low input/output differentials.

How does the Zener diode work in a half wave power supply?

The voltage from a half-wave power supply is applied to a resistor R and a Zener diode connected in series. In normal operation, the Zener diode operates in the “reverse- breakdown” mode, in which the reverse voltage is equal to the nominal Zener voltage and is independent of the current (as long as the current in non-zero).

What is the maximum power rating of the Zener diode?

The maximum power rating PZ of the zener diode is 2W. Using the zener regulator circuit above calculate: a). The maximum current flowing through the zener diode. b). The minimum value of the series resistor, RS c). The load current IL if a load resistor of 1kΩ is connected across the zener diode. d). The zener current IZ at full load.

IZM is the maximum current that can flow through the diode, and PZM is the diode’s maximum power dissipation, and VZ is the Zener voltage. Knowing the maximum current that can flow through the Zener diode is important, because exceeding its power rating can damage or destroy the component.

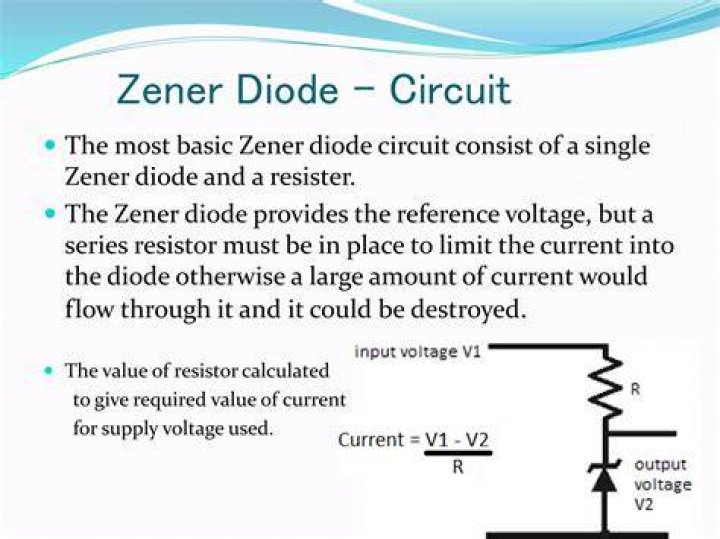

How does the resistor your work on a Zener diode?

The resistor R helps regulate the current through the Zener diode. As the load current is increased, some of the current that was flowing through the Zener diode is bypassed into the load device, reducing the Zener current, but the voltage remains constant.
