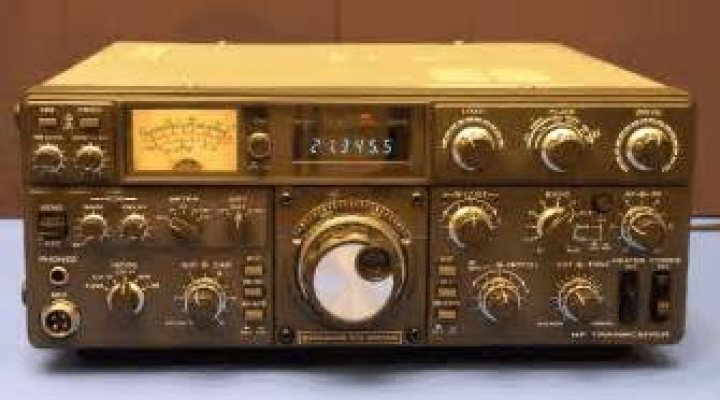

How many Watts Does a ts-830s transceiver have?
James Olson How many Watts Does a ts-830s transceiver have?
“power” attributed to the TS-830S and family of transceivers. I AT-230 meter on all bands in CW. I know that the actual output can vary some but I have seen claims as high as 120 to 130 watts out.
Are there any modifications to the Kenwood ts-180?
Modifications for the Kenwood TS-180 TS-180S Trouble Sheet ALC deflection low Replace D21 on IF unit from 7.1 to 9.0V zener. Readjust all ALC pots. IF #2 OUtput low Bridge R77 position, replace R78 with R77 470 ohms. See TKC service Bulletin.
Can a TS 180 be used with a linear amplifier?
TS-180S Use with a Linear Amplifier Fast Protection with a Linear: For complaints of fast protection, such as when operating CW semibreak-in with a linear, check C73 at the base of Q1 on the LPF unit X51-1180-00. If it is a 1uf, change to 3.3 uf, 25v or greater.
Is there a CW delay on the ts-180?
TS-180S CW Delay During VOX Memory Operation 2-7-80 Some operators may report missing the first dit during CW VOX operation on the memories. This will occur only in early units, and may be improved by changing one capacitor in the DFC. On the DFC VCO unit X50-1550-00, check C3 at the base of Q3.
Modifications for the Kenwood TS-180 TS-180S Trouble Sheet ALC deflection low Replace D21 on IF unit from 7.1 to 9.0V zener. Readjust all ALC pots. IF #2 OUtput low Bridge R77 position, replace R78 with R77 470 ohms. See TKC service Bulletin.
“power” attributed to the TS-830S and family of transceivers. I AT-230 meter on all bands in CW. I know that the actual output can vary some but I have seen claims as high as 120 to 130 watts out.
TS-180S Use with a Linear Amplifier Fast Protection with a Linear: For complaints of fast protection, such as when operating CW semibreak-in with a linear, check C73 at the base of Q1 on the LPF unit X51-1180-00. If it is a 1uf, change to 3.3 uf, 25v or greater.
TS-180S CW Delay During VOX Memory Operation 2-7-80 Some operators may report missing the first dit during CW VOX operation on the memories. This will occur only in early units, and may be improved by changing one capacitor in the DFC. On the DFC VCO unit X50-1550-00, check C3 at the base of Q3.
