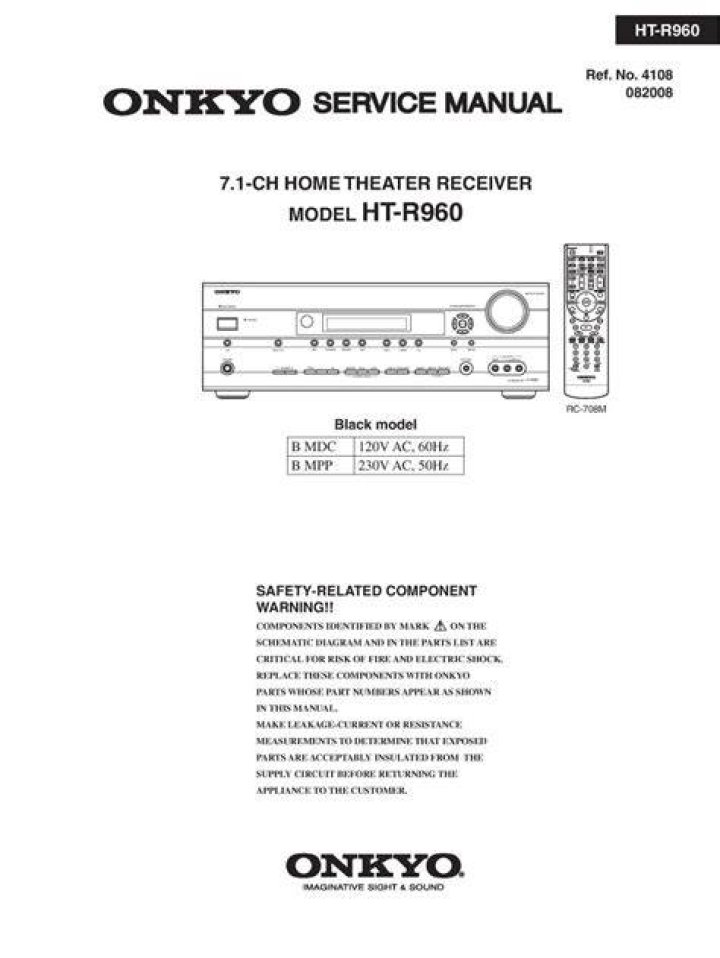

How to download the Onkyo ht-r960 service manual?

HT-R960 3 7 63 1515 0 SCHEMATIC DIAGRAMS-11 WAVEFORM SECTION-2/3 Video Waveform Part Video source color and pattern <Notes> 1. WF21 is short for Waveform-21 . 2. Refer to SD-4 (SCHEMATIC DIAGRAMS-4) for the location of each waveform on circuit.

What to do when your Onkyo goes into Protect Mode?

Leave the speaker and audio cables disconnected. Turn the receiver on and turn the volume to the maximum setting. Leave the receiver on for 30 seconds. If the receiver shuts off and goes back into protect mode you will need to contact your Onkyo dealer. Turn the volume back to the minimum setting and turn off the receiver.

Why does my Onkyo TV not pass through?

The Onkyo receiver is part of an HT system, HT-R590. After a month or so I first noticed that while the SAT/CAB input for HDMI on the receiver was set to ‘pass through’, nevertheless, when the receiver was off, occasionally when trying to turn on only the cable box and TV one got video on the HDTV (Mitsubishi WD-82740) but no sound.

How can I Make my Onkyo receiver work with my turntable?

Adjust the volume controls so you can hear sound. The bare wires of the speakers should be in contact with the metal parts of the speaker terminal on the receiver. Check all speaker wire and power cords for shorts. Your Onkyo receiver is not compatible on its own with a turntable that uses an MC cartridge.

What to do if your Onkyo speaker goes into Protect Mode?

If the receiver shuts off and goes back into protect mode you will need to contact your Onkyo dealer. Turn the volume back to the minimum setting and turn off the receiver. Unplug the power cord from the wall and then reconnect the speaker and audio cables. Plug the power cord back in and then power then turn on the receiver.

What causes the Onkyo protection circuit to be activated?

The Onkyo protection circuit is activated when the sensor in the receiver detects excessive heat or voltage irregularities. Using speakers with the incorrect impedance and running the receiver at excessive volumes for a prolonged period will trigger the protection circuit.

What happens when fuse blows on Onkyo tx-sr606?

When the device goes into protect mode, the unit will shut down, and the standby light will blink continually. This prevents the fuse from blowing. If your fuse were to blow and the device continued to run the amp could become damaged.

Is there an owner’s manual for Onkyo a-9070?

A-9070 Manuals Owner’s Manual-English Owner’s Manual-Spanish/French M-282 Manuals Owner’s Manual M-5000R Manuals Owner’s Manual M-5010 2-Channel Amplifier Manuals M-5010 Instruction Manual Product Sheets M-5010 Product Information Sheet PA-MC5500 Manuals Owner’s Manual PA-MC5501 Manuals Owner’s Manual-English Owner’s Manual-Spanish/French A-9150
