What is CH in soil classification?
Lucas Hayes What is CH in soil classification?

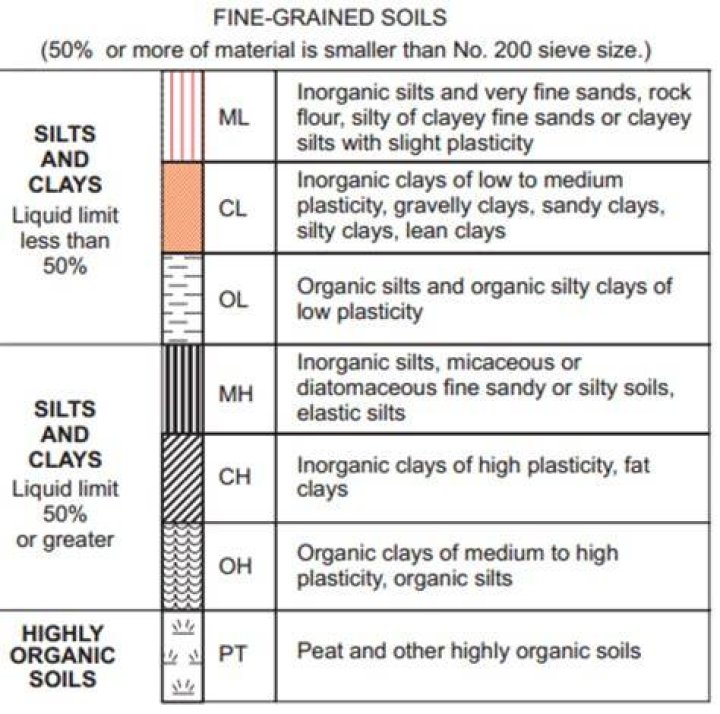

11.4 Correspondence between USDA textural classes and the USC system
| USC group symbol | Typical names for soils |
|---|---|
| OL | Organic silts and organic silty clays of low plasticity. |
| MH | Inorganic silts, micaceous or diatomaceous fine sandy or silty soils, elastic silts |
| CH | Inorganic clays of high plasticity, fat clays |
What does ML stand for in soil classification?
ML- Silt-LL<50 & plots on or below the “A” line. CL-ML- Clayey Silt-LL<50 & PI >4< 7 and plots on or above “A” line. CH- Fat Clay- LL>50 & plots above the “A” line.
What is CI soil?
CI → Medium plastic inorganic clay. MI → Medium plastic silt. OI → Medium plastic organic clay. (iii) High plastic soils (LL > 50%) CH → High plastic inorganic clay.
What is SM soil classification?
SM. Silty sands, sand-silt mixtures. SC. Clayey sands, sand-clay mixtures. FINE-GRAINED SOILS (50% or more of material is smaller than No.
Which soil has less than 10% clay?
Sand is also the textural class name of any soil that contains 85 percent or more sand and no more than 10 percent clay.
Is high plasticity clay good?
A high PI indicates an excess of clay or colloids in the soil. Its value is zero whenever the PL is greater or equal to the LL. The plasticity index also gives a good indication of compressibility (see Section 10.3). The greater the PI, the greater the soil compressibility.
What is CC and CU?
The uniformity coefficient (Cu) and the coefficient of gradation (Cc) are the measures of soil gradation. These coefficients help to classify the soil as well graded or poorly graded ones.
What is the difference between well graded and poorly graded soil?
A soil is said to well grade if it has a good representation of all grain sizes. If the soil grains are approximately of same size, then the sample is described as poorly graded. A soil is said to be gap graded if the intermediate grain sizes are absent.
What is ASTM soil classification?
The ASTM version of the Unified Soil Classification System is ASTM D2487-17: Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System). This classification system is based on particle-size characteristics, liquid limit, and plasticity index.
