What is IR receiver cable?

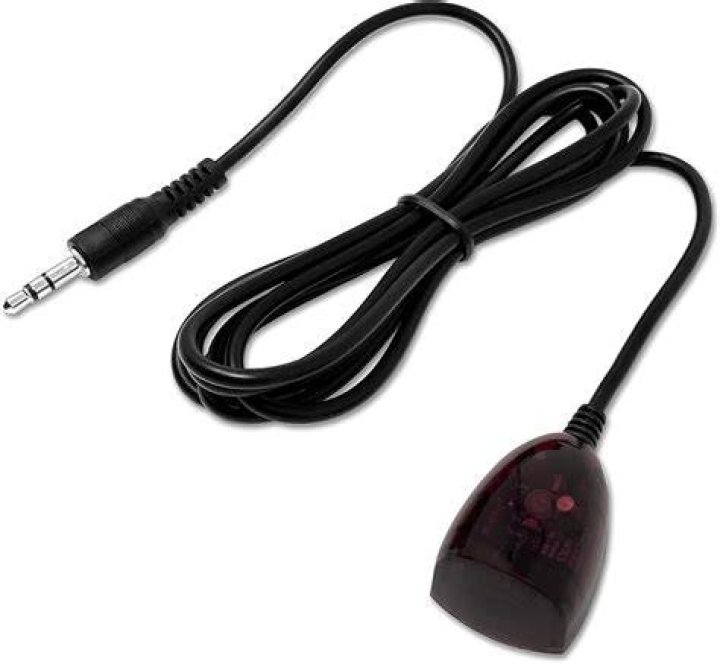

1-5 of 5 Answers. An IR extender cable is an Infra-Red Eye Extension to instead of pointing the remote control directly at the TV, you can point the remote directly toward the IR Eye sensor instead, giving you a much greater range and more versatility with the remote controller features.

How do I connect my IR receiver?

Circuit. The infrared receiver needs three connections: 5 V, GND, and an I/O pin to read the signal it sends. The circuitry inside the infrared receiver makes it safe to connect its signal pin to the Propeller I/O pin with a small resistor, even though the sensor is powered by 5 V.

Where is the IR receiver on my cable box?

The IR Receiver is located on the front panel of the Set Top behind the dark plastic cover.

Where should I put IR Extender cable?

Connect the IR cable to the IR out port on the back of the TV and position the emitter near to the device that you want to control and then select OK to continue. The IR Extender cable relays signals between your TV and other devices.

How do I get my cable box to receive IR signals?

Set STB to “Activate IR” (Infrared)

Use Xfinity remote to change settings in box: Menu>Settings>Remote Control>Activate IR.
Some remotes have a setup button: press hold Setup button until light solid, then enter 987.

Are all IR extenders the same?

Every IR signal has a distinct frequency. These frequencies are measured in kilohertz (kHz). In order for you to be able to control your device (like the TV), your remote and TV must work on the same frequency. Single Band IR Extenders: Those only compatible with one frequency are called Single Band IR extender.

What is IR in and IR out?

IR Port and other related terms are defined below. Infrared (IR) – Light waves just outside the visible spectrum, slightly longer than those visible to the human eye. Infrared light is sometimes filtered out to reduce heat on film or slides.

What kind of cable do I need for an IR receiver?

You should be able to use a cable with standard 3.5mm mono male connectors at both ends. That would be the same as the connector at the ends of the IR emitters that are in that kit. You do need a kit like that since you can’t usually power an IR receiver directly from the IR input. You must log in or register to reply here. Solved!

What can cable pass IR signals to IR input port?

… to the receiver. Basically I need something that collects IR signals from the front of the room, and passes them to the cabinet where all of the equipment is stored, including blu-ray player, etc. If I use something like this, does it mean I can’t really use the IR IN port on the receiver?

Can a gc-rg1 be used as an IR receiver?

The GC-RG1 is an IR receiver able to capture IR frequencies from 30KHz to 72KHz. The GC-RG1 is intended for use with the GC-IRE to capture and digitize IR signals. The GC-RG1 employs a 6ft 3.5mm cable for easy installation and connection to the GC-IRE. No power supply is needed when used with the GC-IRE.

How are IR emitters, receivers and repeaters connected?

The basic connection scheme for an IR repeater system is the same whether one uses structured Cat-type cabling or coaxial cable direct injection: Remote control signals are received by IR receivers (either discreet units or wall mounted) and the signal is amplified and converted for transmission.

Where do I plug in my IR remote?

Simply install the receiver unit near the receiving end such as TV or speaker system where you should aim your remote control toward. And put transmitter unit near the source device such as DVD player. Next, run a Ethernet cable in between and plug all the IR blaster/emitter and IR sensor wires to transmitter and receiver unit accordingly.

What should I plug into my IR transmitter?

Next, run a Ethernet cable in between and plug all the IR blaster/emitter and IR sensor wires to transmitter and receiver unit accordingly. That is all you have to do.
